Popular Type Disc Type Jet Mill

Short Description:

Disc type(Ultrasonic/Pancake)Jet Mill. The Operating Principle: Driven by compressed air through feeding injectors,raw material is accelerated to ultrasonic speed and injected into milling chamber in tangential direction, collided and grinded into particle.


Product Detail

Product Tags

Product Description

Operational Principle

Disc  type(Ultrasonic/Pancake)Jet  Mill. The Operating  Principle:  Driven  by  compressed  air through  feeding  injectors,raw  material  is accelerated to ultrasonic speed and  injected  into milling chamber in tangential direction, collided and grinded  into  particle.  The  particle  size  can  be controlled by adjusting longitudinal depth, milling pressure and material feeding speed. Disc type Jet Mill do good performance to gummy materials.

Features

1 .Suitable  for  the  dry-type  superfine  process, highest  impacting  speed  up  to  2.5  March  and normally 1-10um grains.you can grind several times to reach products’ size.

2.  Good performance to gummy materials, viscosity, hardness and fiber without any block.

3. No temperature rise, suitable for low-melting and heat- sensitive materials.

4. Advantages: simplified design, easy to clean and maintenance, low noise, vibrationless. This equipment has strong superfine crushing ability and low energy consumption.

5. It has a very good pulverization effect on any material, especially fits Chinese herbs and chinese medicine.

6. This machine is compact in structure, easy to operate, and easy to install and disassemble.

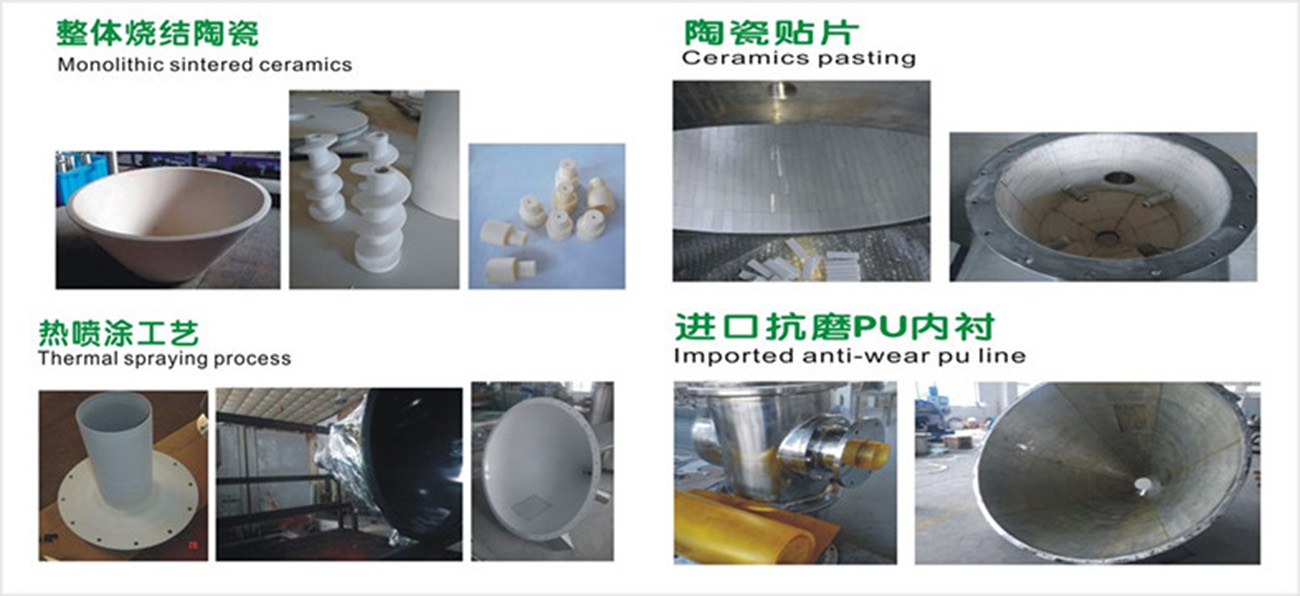

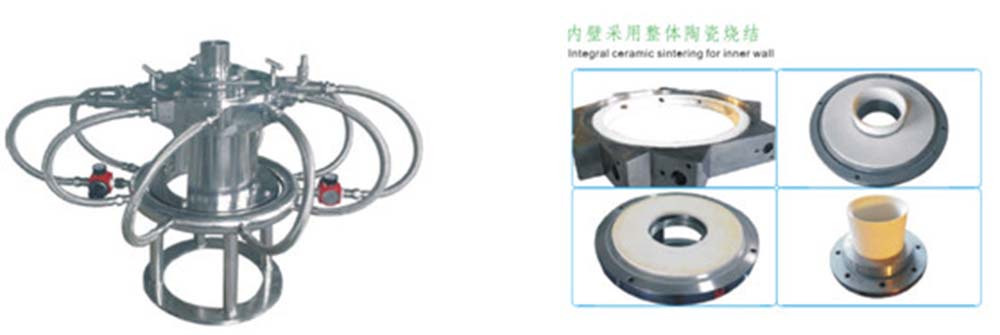

7. Engineering ceramics are wear-resistant, corrosion-resistant, long-life, and do not contaminate materials.

1

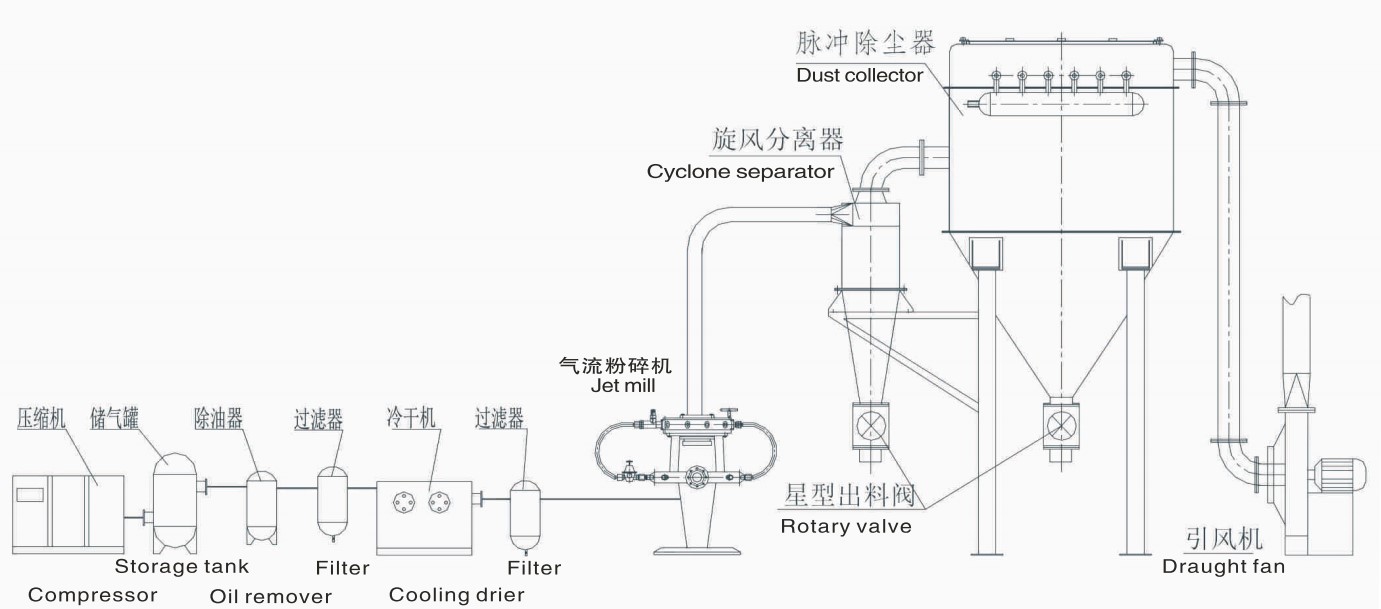

Flow Chart Of Fluidized-bed Jet Mill

The flow chart is standard milling processing,and can be adjusted for customers.

1

PLC Control system

The system adopts intelligent touch screen control, easy operation and accurate control.

APPLICATION SCOPE

It is widely applied to superfine milling in such fields as pesticide, chemical smelt and  pharmaceutical industries. For carbendazim. formal topsin, herbicide, silica aero gel, pigment dye and cortisone.

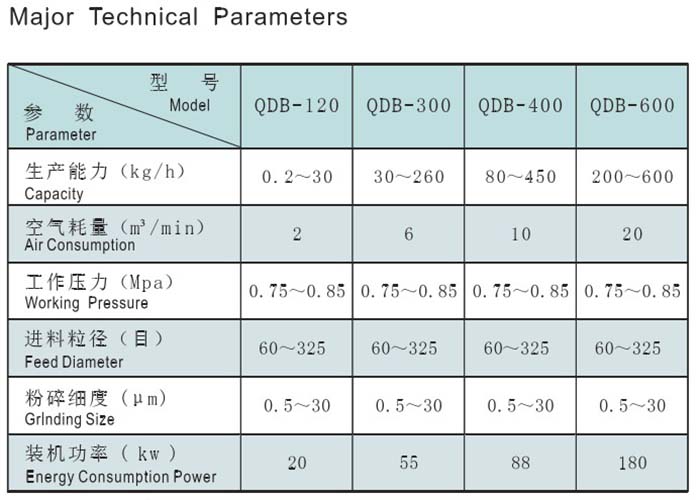

Model
Parameter

QDB-120

QDB-300

QDB-400

QDB-600

Capacity(kg/h)

0.2~30

30~260

80~450

200~600

Air Consumption(m/min)

2

6

10

20

Working Pressure(Mpa)

0.75~0.85

0.75~0.85

0.75~0.85

0.75~0.85

Feed Diameter

60~325

60~325

60~325

60~325

Grlnding Size(um)

0.5~30

0.5~30

0.5~30

0.5~30

Energy Consumption Power

(kw )

20

55

88

180

1

Partial Application Examples

Company Introduction

Kunshan  Qiangdi  Grinding  Equipment  Co.,Ltd  is a professional high-tech enterprise engaged in powder equipment R&D, manufacturing and sales. Which locates  in  beautiful  Jiangnan  watertown-Youde Road, High-Tech Zone, Kunshan City, Jiangsu Province. We always wholeheartedly serve our customers. and insist on the principle"Quality First, Striving for innovation and development" to provide overall solution for our quality customers.
 Besides, we have passed enterprise quality authentication ISO9001:2008.
We have many technology research and development engineers with more than 20 years work experience in giant enterprises,  As private  enterprise,  we  also  have flexibility advantages in production cost, technology Innovation, production and  delivery  time,  especially after-sales service managements.  We  are  now  focusing  on development and production of high-end powder equipments, the main products include fluidized-bed jet mill, disc type supersonic jet mill, jet ultrafine pulverizer, air classifier, pharmaceutical and food-grade jet mill under GMP/FDA requirements, intelligent environmental pesticides grinding &mixing system and intelligent explosion-proof jet pulverizing system and so on.  and also we are apt to learn customers so that we could provide them better service and solutions.
We export our products to worldwide: America, Europe, Australia, Africa and Southeast Asia and other parts of the world, such as  Germany, Pakistan, Korea, Vietnam, India, Italy, Burma etc. Thanks to the trust of our clients together with our endeavors, QiangDi business has been expanding tremendously in the past years.
But we never stop our pursuit for excellence and we sincerely wish to share this promising business with all business partners on a double-win basis.

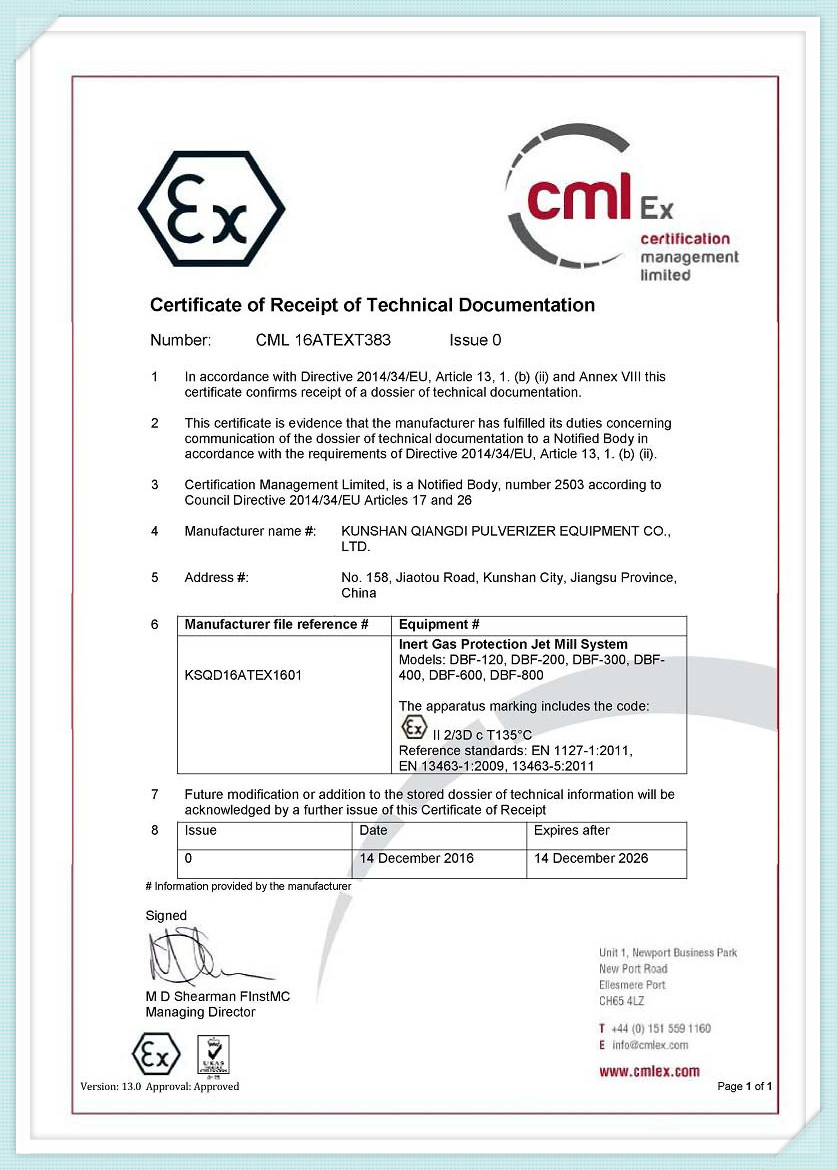

Company Qualification

Exhibition photos

35

Our Advantages

1. Make optimal solution and layout according to clients raw material and capacity request.
2. Make booking for shipment from Kunshan Qiangdi factory to clients factory.
3. Provide installation and commissioning, training on-site for clients.
4. Provide English manual for whole line machines to clients.
5. Equipment warranty and lifelong after-sales service.
6. We can test your material in our equipment for free.

Our Service

Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
3. Sample testing support.
4. View our Factory.

Sale service:
1. Ensure product with high quality and pre-commissioning before delivery;

2. Deliver on time;
3. Provide full set of documents as customer's requirements.

After-sale service:

Provide considerate services to minimize clients' worries.
1. Engineers available to service machinery overseas.
2. Provide 12 months warranty after goods arrive.
3. Assist clients to prepare for the first construction scheme;
4. Install and debug the equipment;
5. Train the first-line operators;
6. Examine the equipment;
7. Take initiative to eliminate the troubles rapidly;
8. Provide technical support;
9. Establish long-term and friendly relationship.

FAQ

1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in QiangDi workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.

2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Our professional engineers can make the most suitable solution based on your kinds of raw materials, capacity and others requirement.
2). Qiangdi has many technology research and development engineers with more than 20 years experience, our R&D ability is very strong, it can develop 5-10 new technology every year.
3). We have a lot of giant customers in Agrochemical, New material, Pharmaceutical field all over the world,.

3. Q: What service can we supply for machine installation and test run? What is our warranty policy?
Answer: We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run. We offer warranty of 12 months after installation or 18 months after the delivery.
- We offer lifetime service for our machine products after the delivery, and will follow up the machine status with our clients after the successful machine installation in our clients' factories.

4. Q: How to train our staff about operation and maintenance?
Answer: We will provide every detailed technical instructive pictures to teach them for operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

5. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.

6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.

7. Where is your company located? How can I visit there?
Answer: Our company is located in Kunshan city, Jiangsu Province, China, it is the closest city to Shanghai. You can fly to Shanghai airport directly. We can pick you up at the airport or train station etc.
