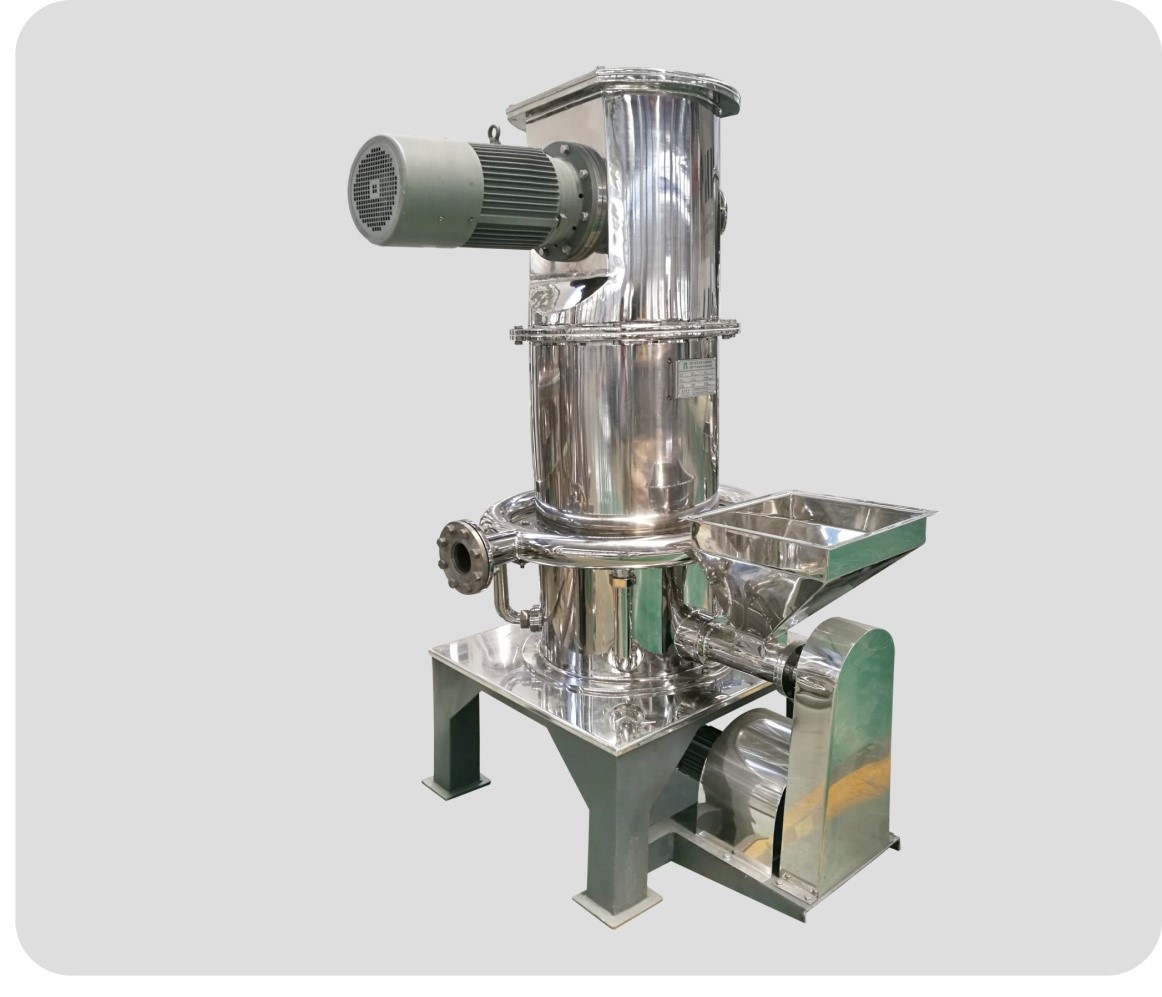

High Hardness Materials Jet Mill

Short Description:

The Fluidized-bed Jet mill is actually such a device that using the high speed air flow to perform the dry-type superfine pulverizing. Driven by compressed air, raw material is accelerated to the crossing of four nozzles to be impacted and grinded by upward flowing air to the grinding zone


Product Detail

Product Tags

Product Description

Operational Principle

The Fluidized-bed Jet mill is actually such a device that using the high speed air flow to perform the dry-type superfine pulverizing. Driven by compressed air, raw material is accelerated to the crossing of four nozzles to be impacted and grinded by upward flowing air to the grinding zone, influenced by centrifugal force and air flow, powder up to grading wheel will be separated and collected(the bigger the particles is , the stronger the centrifugal force is; The fine particles that meet size requirement will enter the grading wheel and flow into the cyclone separator and get collected by the collector. );other powder swirls back to milling chamber for further milling processing.

Notes: Compressed air consumption from 2 m3/min up to 40 m3/min. Production capacity depend on specific characters of your material, and can be tested in our test stations. Data of production capacity and product fineness in this sheet are just for your reference. Different materials have different characteristics, and then one model of jet mill will give different production performance for different material. Please contact me for tailored technical proposal or trials with your material.

1
2

Features

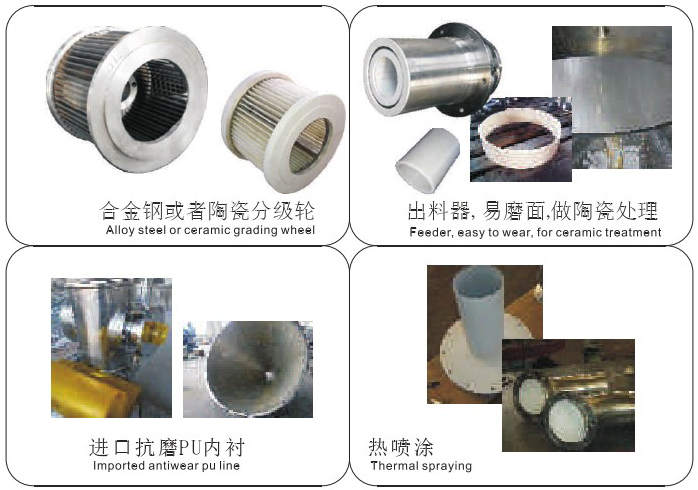

1.Precision ceramic coatings, 100% eliminate the iron pollution from material classification process to assure the purity of the products. Especially suitable for iron content requirements of the electronic materials, such as cobalt high acid, lithium manganese acid, lithium iron phosphate, Ternary Material, lithium carbonate and Acid lithium nickel and cobalt etc battery cathode material.

2. No rise in temperature: The temperature will not increase as the materials are pulverized under the working conditions of pneumatic expansion and the temperature in the milling cavity is kept normal.

3.Endurance: Applied to materials with Mohs Hardness below Grade 9. since the milling effect only involves the impact and collision among the grains rather than the collision with the wall .

Flow Chart Of Fluidized-bed Jet Mill

The flow chart is standard milling processingļ¼Œand can be adjusted for customers.

4

PLC Control system

The system adopts intelligent touch screen control, easy operation and accurate control.

5
